This article is the operator's manual for the JUCY Condo Gen1 campervan - Australia. It covers starting the vehicle, baby seat installation, windows and vents, the 240-volt and 12-volt electrical systems, fresh water, grey water, water pump, toilet cassette, tap and sink, portable gas stove, fridge, lights, dining table, power points, bed setup, storage, and fuel.
Need-to-know
- Fuel type: Check the fuel sticker on the fuel door or fuel cap and review the rental agreement - some vehicles use diesel, others use unleaded.
- Daily drive time: 4–6 hours per day to keep the domestic 12-volt battery charged (powers water pump, fridge, interior lights, and radio).
- Water pump: Must be switched on via the 12-volt panel to use the tap. Turn off when not in use. Do not run empty.
- Gas stove: Portable butane cooker stored under the bottom bed. Maximum 15 minutes continuous use. Not designed for pans larger than 200mm. Remove cartridge when not in use.
- Toilet cassette: Must be emptied and cleaned before returning the vehicle to the depot.
- 240-volt: Required for power points. Plug in every second night to keep the house battery charged.
- Emergency contact: JUCY Roadside Assistance - call for wrong fuel or any red dash light.
1. Description of keys
- Ignition key: Start the vehicle and lock/unlock the diesel tank cap.
- Fresh water key: Lock/unlock the freshwater compartment.
2. Vehicle equipment

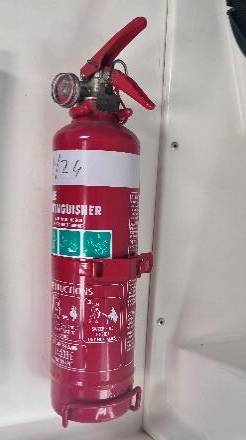

Fire extinguisher
Each vehicle is equipped with a dry chemical fire extinguisher, selected to address both Type B fires (grease and liquids) and Type C fires (electrical). The fire extinguisher is attached to the interior of the vehicle.
To deploy the extinguisher:
- Grasp the ring at the top of the bottle.
- Direct the nozzle towards the top of the flames.
- Press the lever down firmly.
- Guide the nozzle from side to side across the base of the flames.
3. Starting the vehicle
The gear stick must be in PARK and your foot on the brake pedal in order for the vehicle to start.

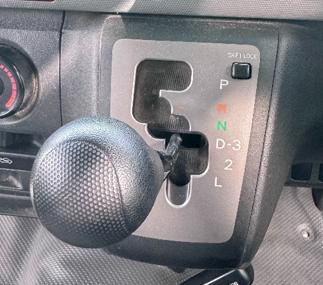

Gear stick in parking mode

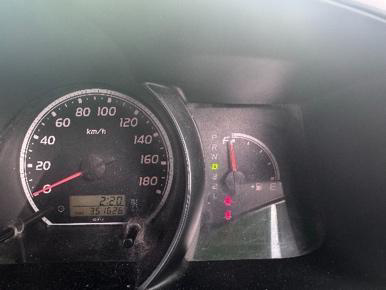

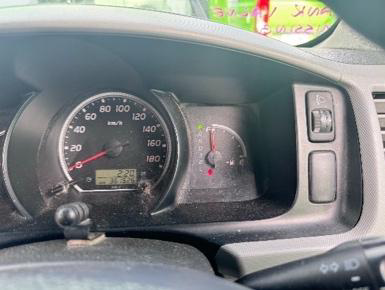

- The dashboard will display a 'P' indicating that the vehicle is in park.

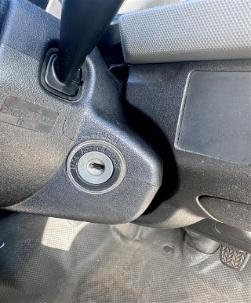

- Start the vehicle using the ignition key.
- With your foot still on the brake pedal, pull the gear stick down into the 'D' position. The dashboard will display a 'D' indicating drive.
Gear stick in driving mode

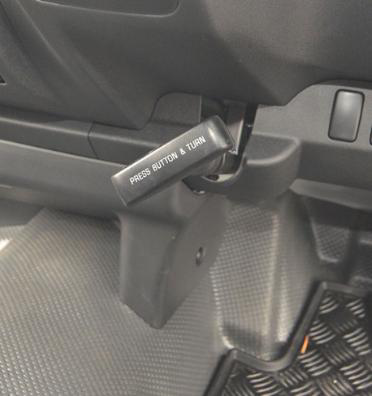

Handbrake: Located below the gear stick.
- To disengage: Twist and push the handbrake down. A red exclamation mark will disappear from the dashboard.
- To engage: Pull the handbrake up. A red exclamation mark will appear.

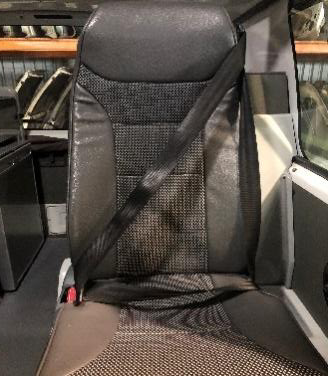

4. Baby seat installation

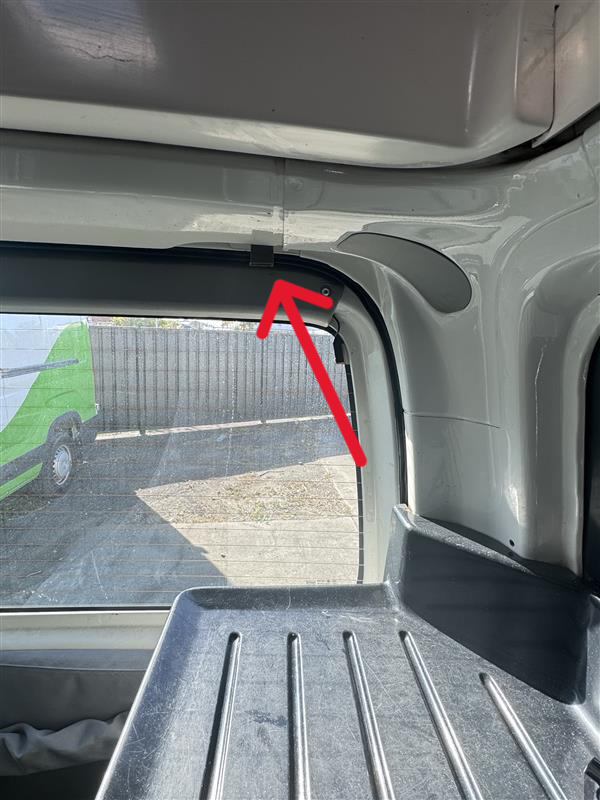

The 2 anchor points for baby seats are located at the rear of the vehicle. To install the baby seat, feed the tether strap over the headrest and connect to the anchor point. Thread the vehicle seatbelt through the seatbelt path on the baby seat from one end and buckle on the other side. Ensure the seatbelt is firmly secured.
5. Windows and vents

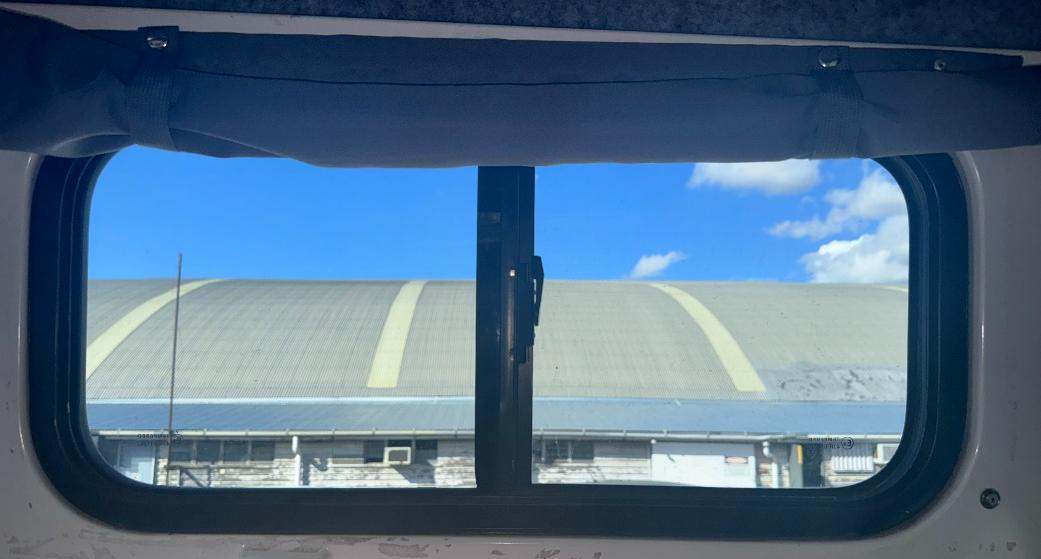

Windows: Push the window to the right to open.

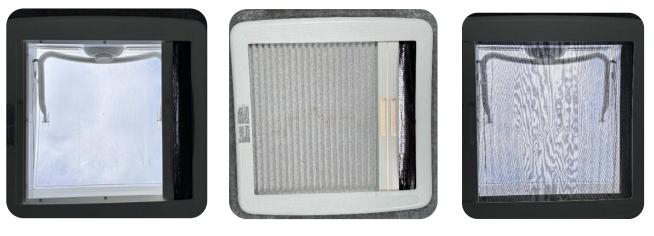

Vents: Push the button circled on the vent, grab the rail, and pull it towards yourself to open.
The vent has a mosquito net and a sun blackout blind. These can be used separately.
- To use the mosquito net: Pull the blind to the left using the handle indents.
- To use the sun blackout blind: Pull the blind to the right using the handle indents.
6. 240-volt electrical system

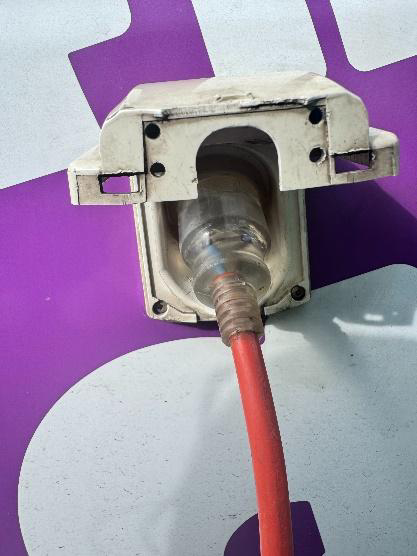

To run the power points and to recharge the house battery, connect the vehicle's 15AMP electrical cord to a 240-volt external power source. These items will only work when plugged into power. It is recommended that the vehicle is plugged into power every second night to keep the house battery charged.

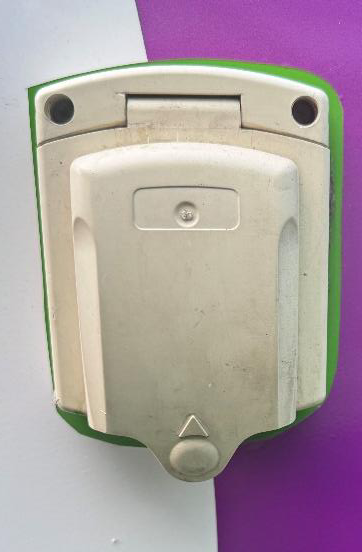

The 240-volt external plug is located on the driver's side of the vehicle.
7. 12-volt electrical system
Your vehicle has two batteries:
- Engine battery - located under the passenger's side cabin floor in the main driver's cabin.
- Domestic battery - located in the rear of the cabin.
The domestic battery operates the water pump, fridge, interior lights, and radio. It is charged by the alternator when the vehicle is being driven and by the 240-volt system when plugged into mains power.

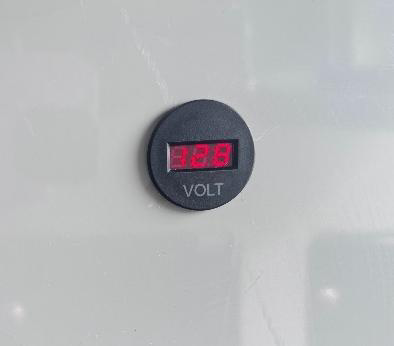

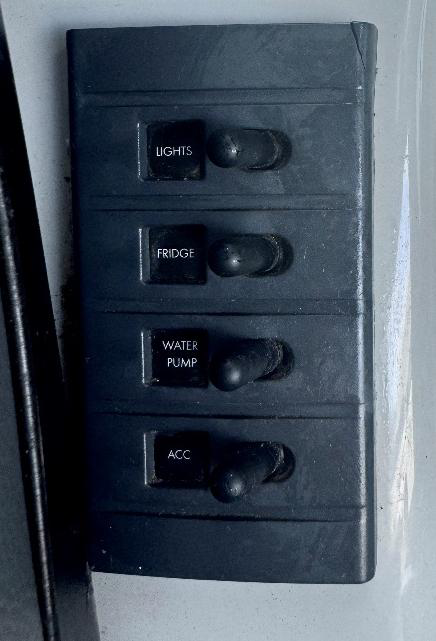

The 12-volt electrical panel and the 12-volt reader are located beside the driver's side rear seat.
Important: It is recommended that the vehicle is driven for 4–6 hours a day so the domestic battery continues to power the 12-volt system.
8. Fresh water tank
The vehicle has an onboard freshwater system consisting of a water pump and freshwater tank. The water tank has a 50L capacity and is located on the passenger side of the vehicle. This water is for the sink, shower, and toilet flush.
To fill the freshwater tank:

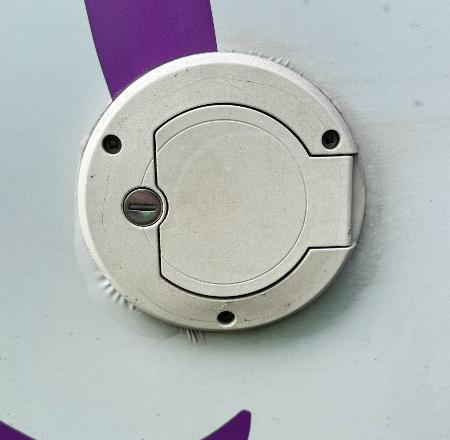

- Flip up the compartment marked "Fresh water only".

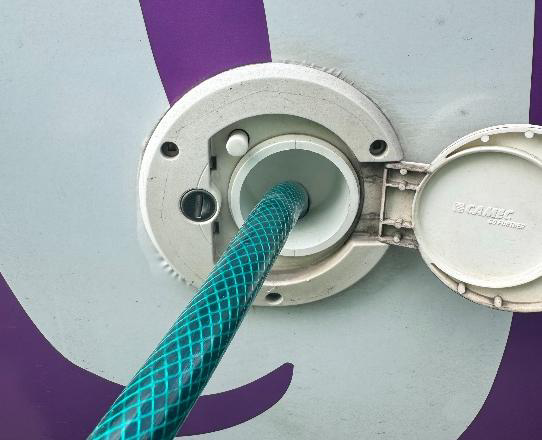

- Place the end of the water hose into the tank and connect the hose to the tap to fill with fresh water.
Important tips:
- Do not use too much pressure - the tank must be vented while filling.
- If you get an air bubble, remove the hose, reinsert it, and fill slowly again.
- The tank is full when water starts to overflow from the water inlet.
9. Grey water tank
The grey water holding tank collects wastewater from the kitchen sink. Empty the grey water tank as regularly as possible.
To empty the grey water tank:
- Collect the grey water hose from the storage compartment.

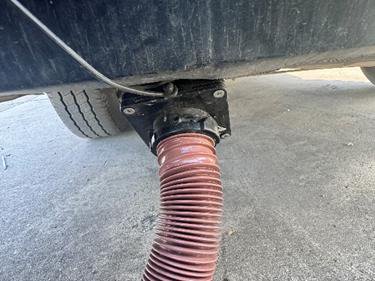

- Connect the hose to the outlet. Make sure it is firmly attached.
- Place the other end of the hose into the dump station disposal opening.

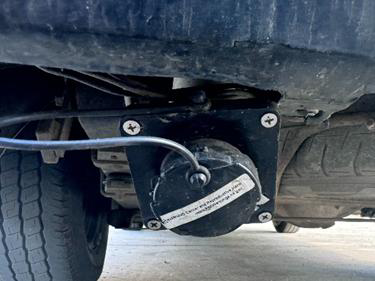

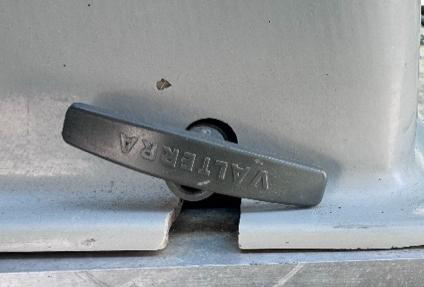

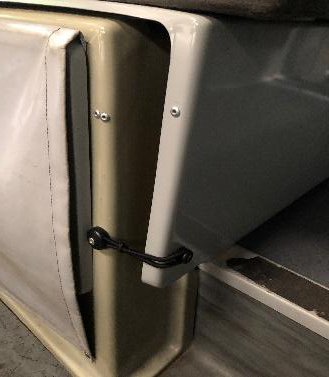

- Open the tank by pulling the lever located at the base of the rear cabinet, or on the rear undercarriage on the passenger side of the vehicle. Wait for it to empty.
- Once the grey water is empty, close the lever, remove the hose, and stow it away in the storage compartment.
If the grey water tank becomes obstructed:
- Insert a hose into the grey water outlet as far as it reaches.
- Turn on the hose to its highest pressure setting and direct the flow of water into the tank until it reaches full capacity.
- Withdraw the hose to facilitate the flow of grey water.
- Repeat if needed until the obstruction is cleared.
10. Water pump

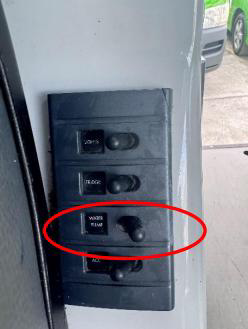

To use water on board the vehicle, ensure there is water in the freshwater tank. On the 12-volt panel, switch the water pump on. You will hear the pump quietly start up. The pump operates as part of the 12-volt system. When you are not using the water pump, ensure it is turned off.
The water pump must be on to operate the kitchen tap.
Note: Avoid running the pump when the water tank is empty. Operating the pump continuously with no water can cause damage.

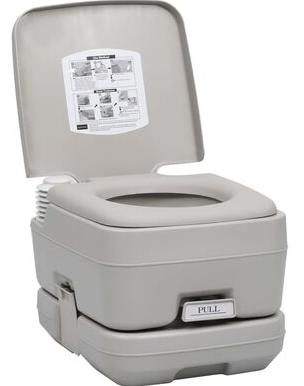

11. Toilet cassette
It is highly recommended to regularly empty the toilet cassette. It is mandatory to empty and clean it before returning the vehicle to the depot.
To empty the toilet cassette:
- Ensure the side valve is closed.
- Unlock the two side latches and separate the two tanks.
- Remove the freshwater tank.
- Remove the cap and empty the waste holding tank.

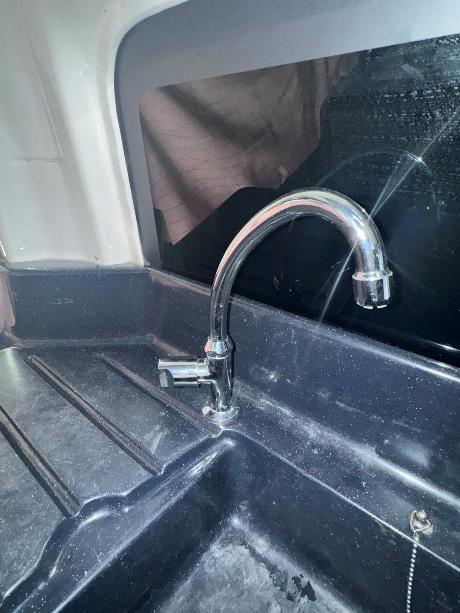

12. Tap and sink
The vehicle comes equipped with a water system. To operate the tap, turn on the water pump switch on the control panel. You will then be able to turn the tap on.

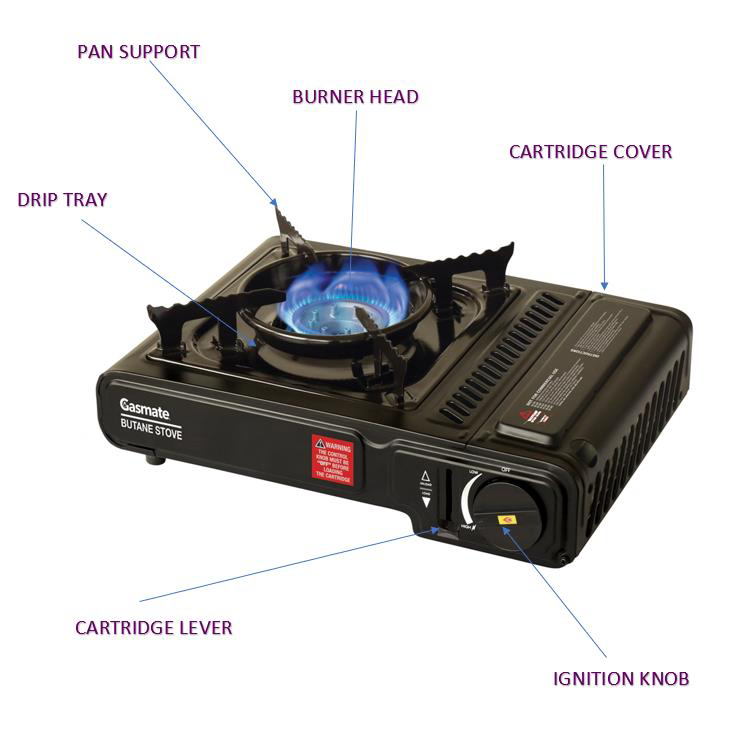

13. Portable gas stove
The vehicle is equipped with a portable butane gas stove, found in the compartment under the bottom bed inside a black carry case. The cooker is designed for very short periods - no longer than 15 minutes at a time. This cooker is not designed for use with pans larger than 200mm.
To start the stove:

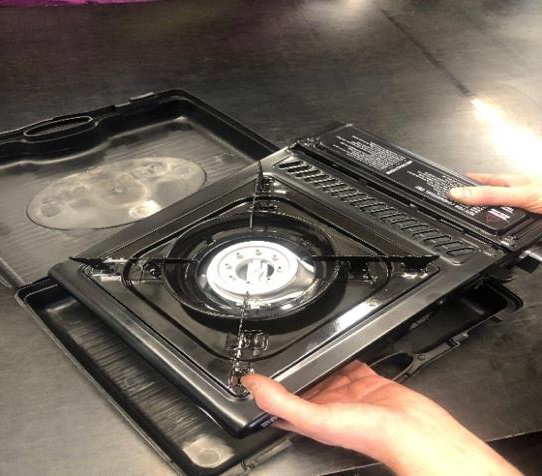

- Remove the gas cooker from the black carry case and place it on a flat surface.
- Open the cartridge cover and place the gas cartridge in.

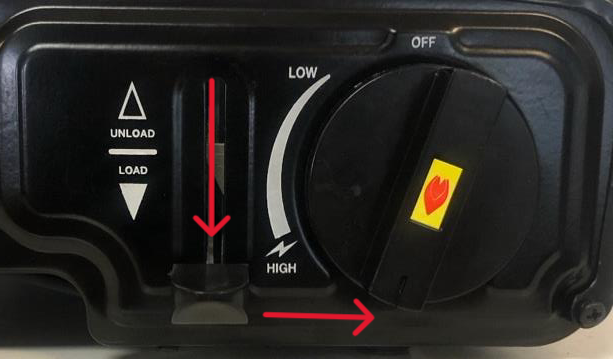

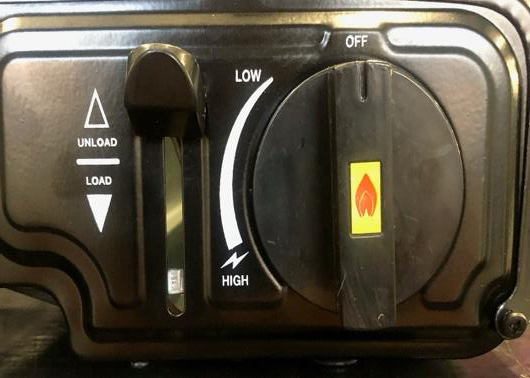

- Turn the ignition knob to OFF and set the cartridge lock lever to UNLOAD.

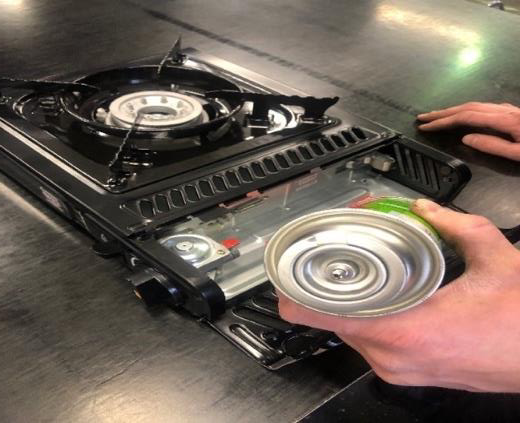

- Open the cartridge cover, slide the gas cartridge into the compartment, top end first, with its notch facing up.

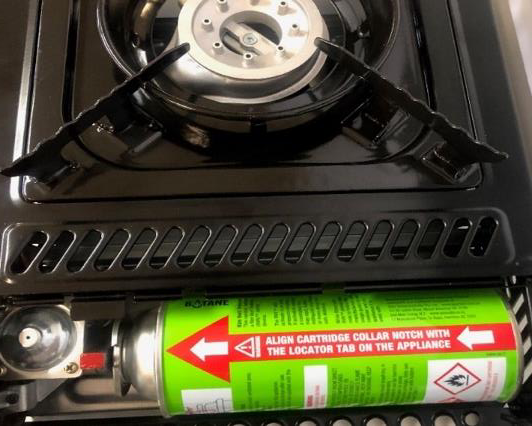

- Align the cartridge collar notch with the locator tab on the gas cooker.
- Push and turn the knob anticlockwise past the OFF position until a click is heard.
Please note: If the burner fails to light, immediately turn the ignition knob to the OFF position and restart again.
| |
2. Open the cartridge cover. | |
3. Turn the ignition knob to OFF and set the cartridge lock lever to UNLOAD. | |
4. Slide the gas cartridge into the compartment, top end first, with its notch facing up. 5. Align the cartridge collar notch with the locator tab on the gas cooker. 6. Push and turn the knob anticlockwise past the OFF position until a click is heard. | |

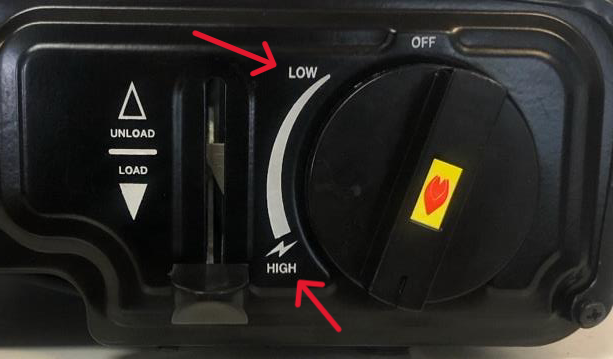

Controlling the flame: Turn the ignition knob between HIGH and LOW.
To shut off:
- Turn the ignition knob to OFF to cut the fuel supply.
- Wait until the flame is fully extinguished.
- Raise the cartridge lever to UNLOAD.
- Remove the gas cartridge from the compartment.
Do not leave the gas bottle inside the cooker when not in use.

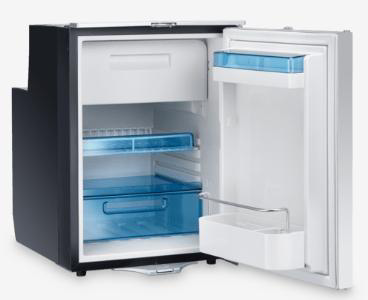

14. Fridge
The fridge operates via the 12-volt and 240-volt system.
To operate the fridge:
- Turn on the fridge switch on the control panel.

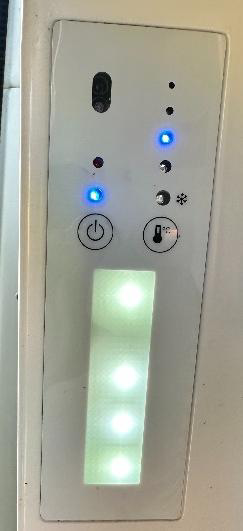

- Check that the blue light is illuminated on the fridge above the power button - this indicates the fridge is on and working.
- The thermostat can be found on the side of the fridge. The optimal range is halfway between the minimum and maximum temperature settings.
15. Lights

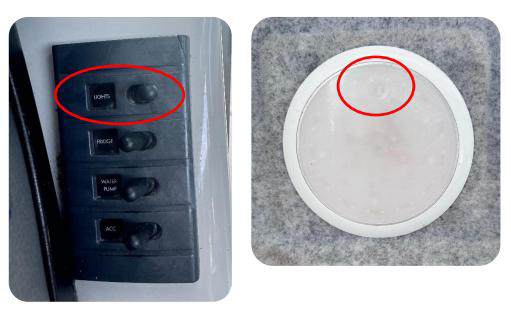

Cabin lights: Turn on the lights switch on the main control panel. To turn on individual lights, press the circle indent button lightly on the device.
Outside light: Flick the orange button located above the sliding entry door. It will illuminate orange.

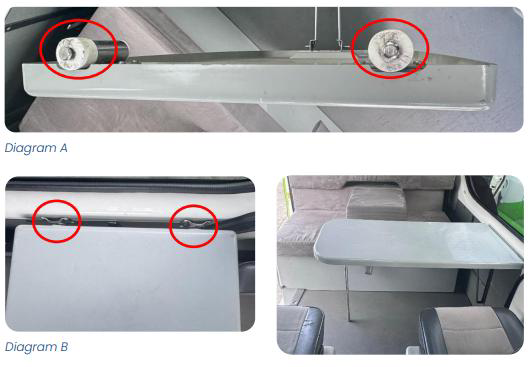

16. Dining table

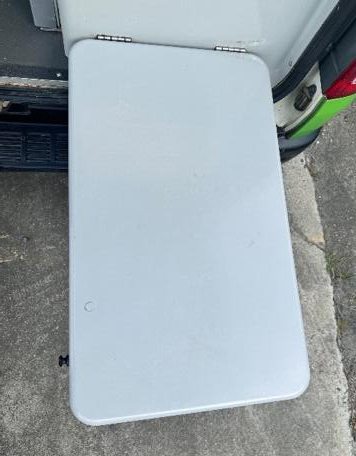

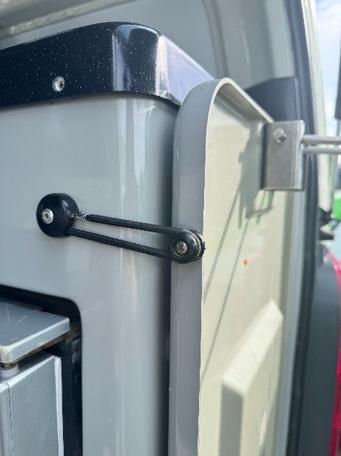

Rear dining: The vehicle is equipped with an outside table connected to the kitchen cabinet. To set up, unhook the bungy clip and extend the table leg.
Inside dining: The vehicle is equipped with an inside dining table. To set up, place the table mounts (Diagram A) into the mounting brackets (Diagram B).

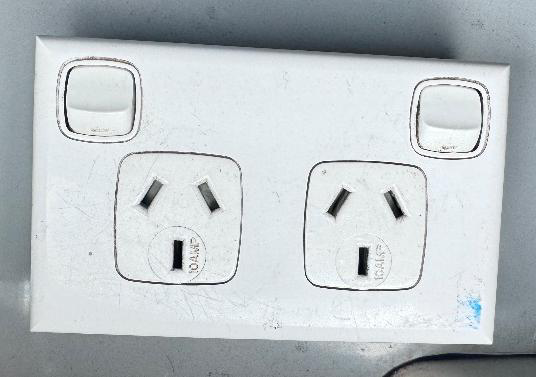

17. Power points
The vehicle is equipped with 2 power points located next to the driver's side rear seat. These will only work when the vehicle is plugged into 240-volt mains power.

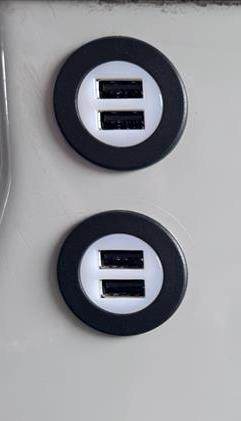

The vehicle is also equipped with 4 USB charger ports located next to the fridge. These will work when the vehicle is plugged in and when the 12-volt control panel is turned on.
18. Bed
The vehicle is equipped with 2 double beds.

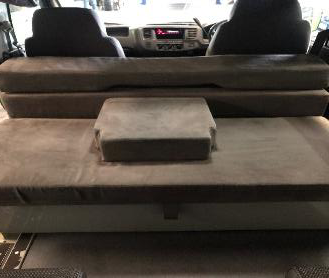

Bottom bed:

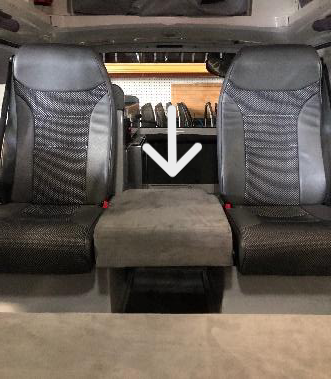

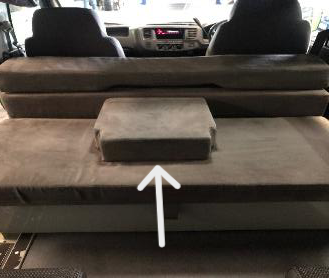

- Locate the small square squab on the rear-facing bench seat.
- Make sure it is firmly secured.
- Undo the black bungee strap.
- Use the strap located in the middle and pull towards the two rear seats until they are connected.
- Once connected, make sure it is fully secured to the two rear seats.
- Pull the small squab to connect to the middle squab.

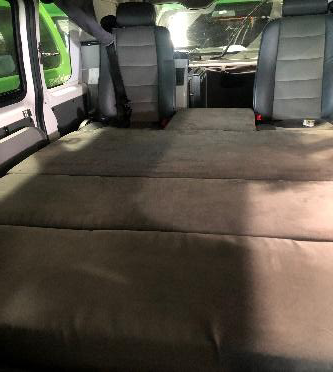

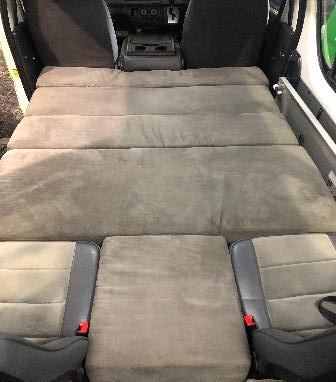

- All 3 squabs should now be flat and secured.

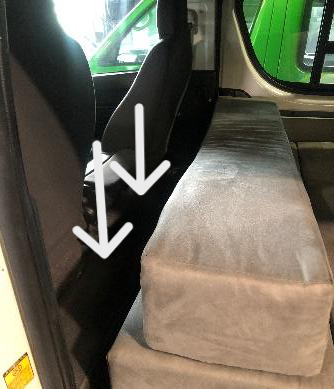

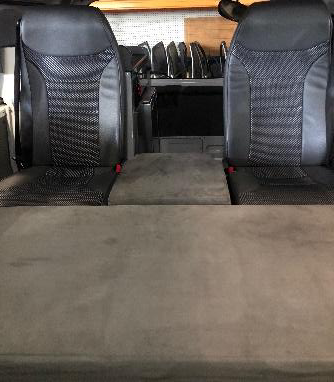

- Place the long single squab behind the 2 front seats — pull the front seat forward and place the squab in the space.
- All squabs should be flat and firmly secured.
| 1. Locate the small square squab behind the front seats. |
|
| 2. Make sure it is firmly secured for safety reasons. | |
| 3. Undo the black elastic strap. | |
| 4. Use the strap located in the middle and pull towards the two rear seats until they are connected. |
|
| 5. Once connected, make sure it is fully secured to the 2 rear seats. | |
| 6. Place the small squab to connect to the middle squab. | |
| 7. All 3 squabs should now be flat and secured. | |
| 8. Place the long single squab behind the 2 front seats - pull the front seat forward and place the squab in the space. | |
| 9. All squabs should be flat and firmly secured. | |

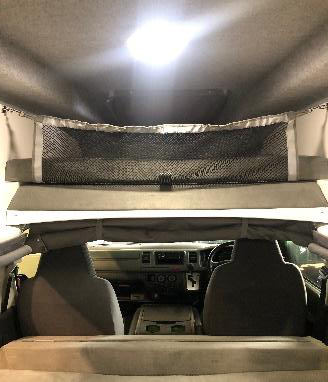

Top bed:

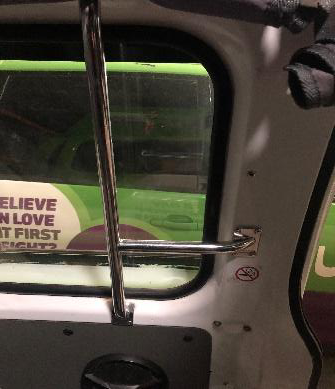

To access the top bed, securely clip the top of the ladder into the bed frame.

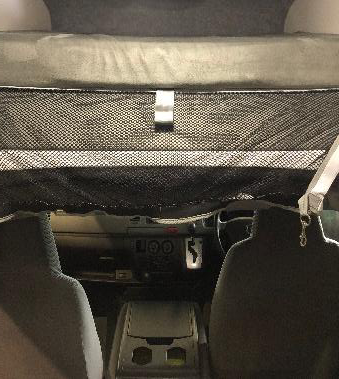

- Unclip both hooks to release the bed net.
- Pull the middle tab to get the mattress out.

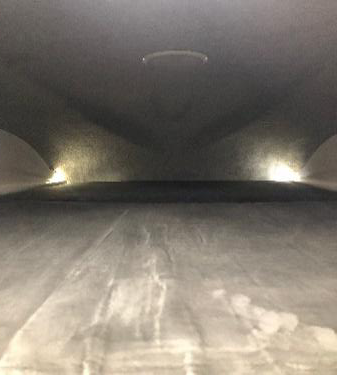

- The top bed is now flat and secure.
- To access the top bed, step on the rear seat. Do not step on the middle bottom squab.
- Securely place your foot on the side foot ladder, located on the right or left-hand side of the sliding door beams.

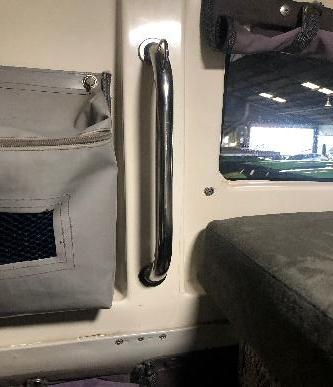

- Place your hand on the side handle to push yourself up onto the roof bed.
1. Use the foot pedal located on the side of the vehicle to assist with accessing the top bed safely. 2. Unclip both hooks to release the bed net. | |
| 3. Pull the middle tab to get the mattress out. | |
| 4. The top bed is now flat and secure. | |
| 5. To access the top bed, step on the rear seat. Do not step on the middle bed or bottom squab. |
|
| 6. Securely place your foot on the side foot pedal, located on the right or left-hand side of the sliding door. |
|
| 7. Place your hand on the side handle to push yourself up onto the roof bed. |
|
19. Storage

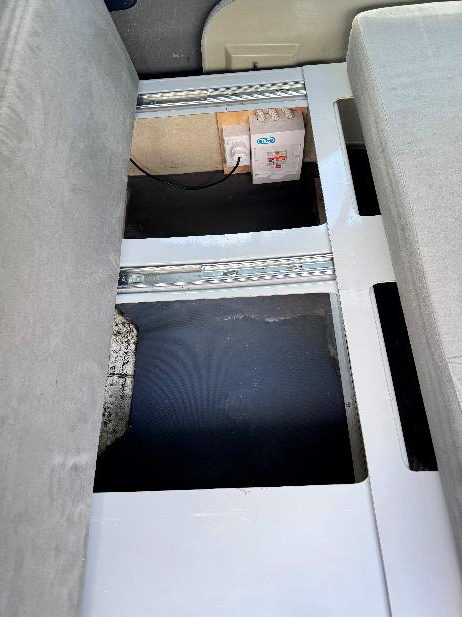

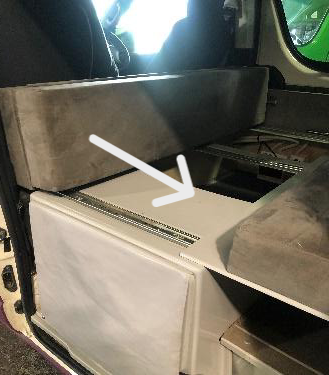

The vehicle has a dedicated storage area located under the middle sliding compartment of the bottom bed.

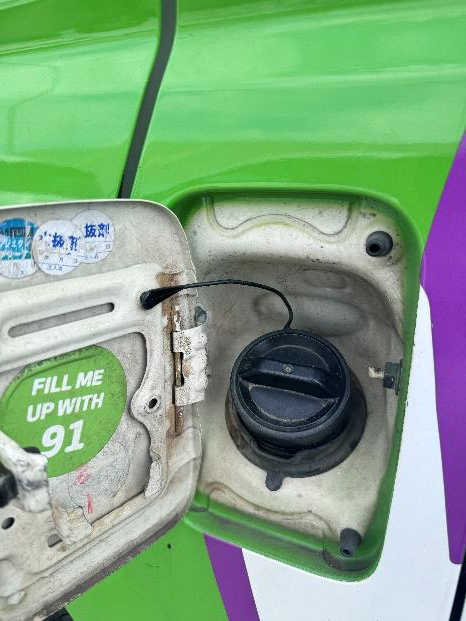

20. Fuel

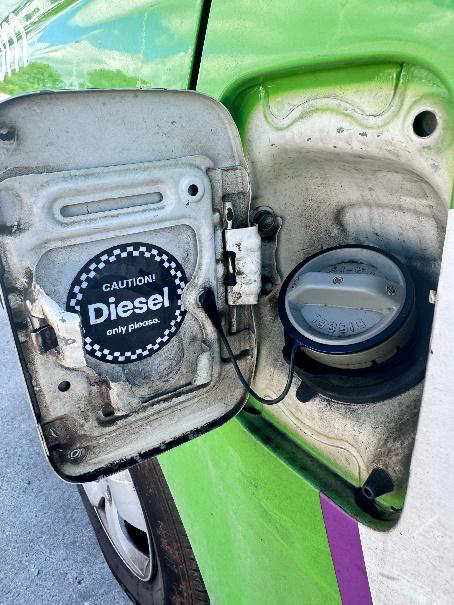

To ensure you are using the correct fuel, always check the fuel sticker located on the fuel door or on the fuel cap. Additionally, review the rental agreement for the specific fuel requirements.
21. Spare Tyre and Tools

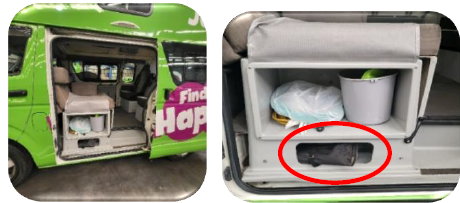

To access the tools, open the sliding door and locate the compartment on the left side. Inside this compartment, you will find the essential tools required for safely changing a tyre.
Always ensure the vehicle is parked on a stable surface before using the tools.
The spare tyre can be found underneath at the back of the vehicle.

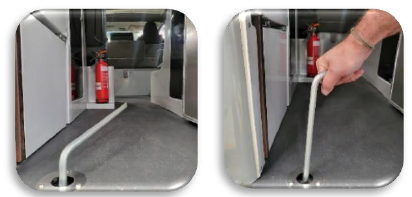

To access the spare tyre located under the rear of the van, use the wheel brace as per the picture below. Unscrew the bolt located on the inside rear of the vehicle on the floor anticlockwise.
Be careful when as the tyre can heave and drop when released.
Always make sure the spare tyre is securely fastened before driving.
