This article is the operator's manual for the JUCY New Zealand Condo Gen3 campervan. It covers starting the vehicle, baby seat installation, windows and vents, the 240-volt and 12-volt electrical systems, fresh water, grey water, water pump, toilet, toilet cassette, gas stove, fridge, lights, dining table, power points, bottom and top bed setup, fuel, jack and spare tyre, and dashboard warning lights.
Need-to-know
- Fuel type: Unleaded 91. Check the fuel sticker on the fuel door or fuel cap and review the rental agreement to confirm.
- Daily drive time: Drive regularly to keep the domestic battery charged via the alternator. The battery is also charged by solar energy and by the 240-volt system when plugged in. Plug into external power every second night.
- Water pump: Must be switched on via the domestic control panel to use the tap. Turn off when not in use. Do not run the pump when the water tank is empty.
- Tap water is not suitable for drinking unless boiled first.
- Gas stove: Built-in LPG stove. Not designed for use with pans larger than 20cm. LPG locker located on the side of the bottom bed. Turn off the gas valve when not in use. Always ventilate the vehicle while cooking.
- Toilet: Cassette toilet — must be emptied and cleaned before returning the vehicle to the depot.
- Smoke alarm: Powered by a replaceable 9V battery. Do not disconnect. Keep connected at all times.
- Tyre size: 195/R15, 50 PSI.
- Oil / coolant: 10W40 engine oil. Red coolant (any brand). Do not mix coolant colours.
- Emergency contact: JUCY Roadside Assistance - call for overheating, oil pressure warning, brake/ABS warnings together, or any red dash light.
- Red dash light rule: Red = stop safely and call Roadside Assistance. Amber = drive cautiously and report.
1. Description of keys
Ignition key: Use this key to start your vehicle.

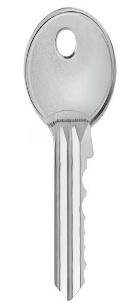

Fresh water key: Use this key to lock/unlock the freshwater tank cap.
2. Fire extinguisher

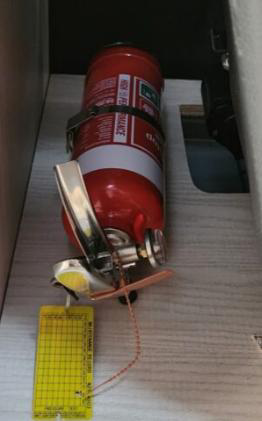

Each vehicle is equipped with a dry chemical fire extinguisher, selected to address both Type B fires (grease and liquids) and Type C fires (electrical). A fire extinguisher is attached to the interior of the vehicle, behind the back seats.
To deploy the extinguisher:
- Grasp the ring at the top of the bottle.
- Direct the nozzle towards the base of the flames.
- Press the lever down firmly.
- Guide the nozzle from side to side across the base of the flames.

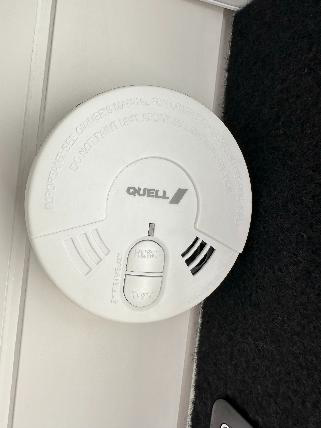

Smoke alarm: Each vehicle is furnished with a smoke alarm powered by a replaceable 9-volt battery. If a replacement is needed during your rental, purchase a new battery, retain the receipt, and reimbursement will be arranged upon vehicle return.
Do not disconnect the smoke alarm. It must be connected at all times for your safety.
3. Starting the vehicle
The gear stick must be in PARK and your foot on the brake pedal in order for the vehicle to start.
- The dashboard will display a 'P' indicating that the vehicle is in park.

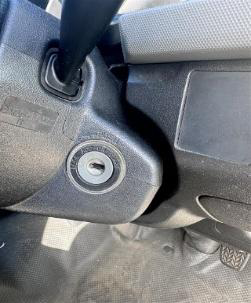

- Start the vehicle using the ignition key.
- With your foot still on the brake pedal, pull the gear stick down into the 'D' position. The dashboard will display a 'D' indicating drive.

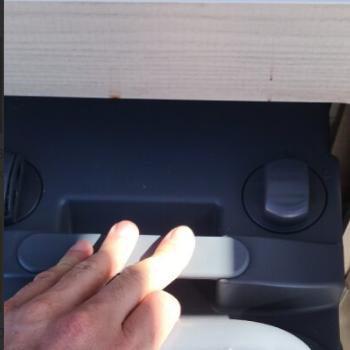

- To disengage: Grip the handle and feel for the button under your finger. Squeeze the button, then turn the handle anticlockwise. The handle will be released and can be pushed away from you towards the floor.
To engage: Grip the handle and pull it towards you.
Please note: The handbrake is located below the gear stick.
4. Baby seat installation

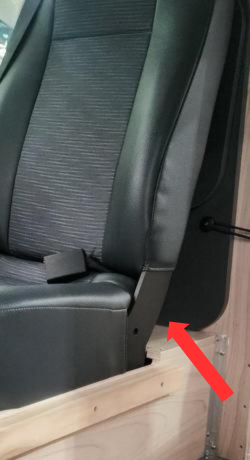

The 2 anchor points for baby seats are located at the rear of the vehicle.
To install a baby seat:
- Feed the tether strap over the headrest and connect to the anchor point.
- Thread the vehicle seatbelt through the seatbelt path on the baby seat, from one end and buckle on the other side.
- Ensure the seatbelt is firmly secured.
4. Windows and vents

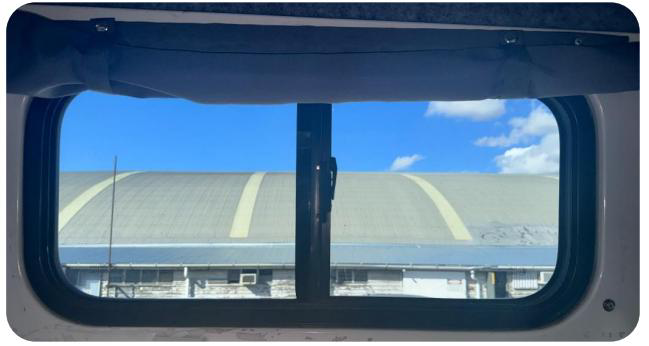

Windows:
To use the window, push the window to the right.

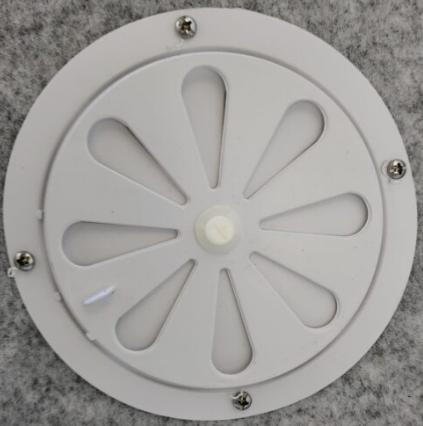

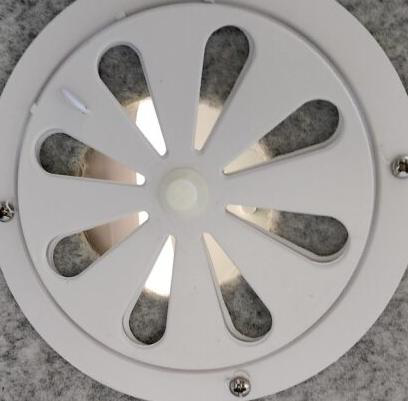

Vents:
The vehicle is equipped with two vents - one in the kitchen and one above the top bed. To open the vents, spin the ventilator around until the holes align.
5. 240-volt electrical system
To run the power points and to recharge the domestic battery, connect the vehicle's 15AMP electrical cord to a 240-volt external power source. These items will only work when plugged into power.
To use the 240-volt electrical system:

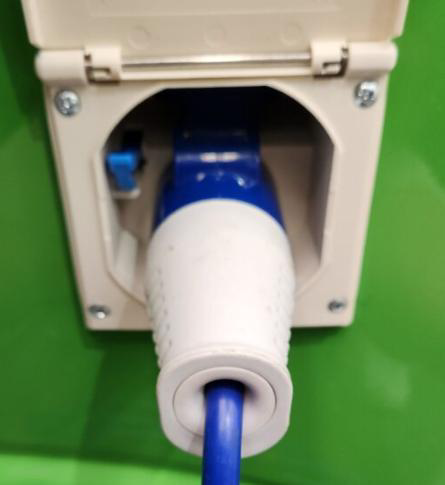

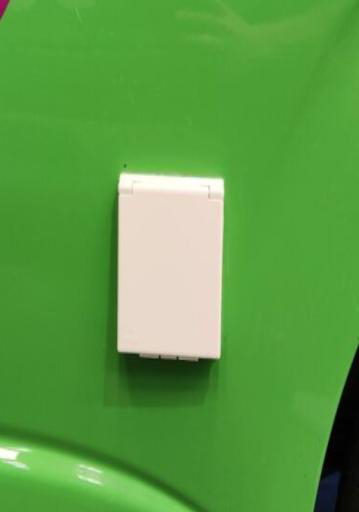

- The 240-volt external plug is located on the driver's side of the vehicle. Connect the cord to the vehicle and to the external power source.
Note: It is recommended that the vehicle is plugged into power every second night to keep the domestic battery charged.
6. 12-volt electrical system
Your vehicle has two batteries - one for the engine and one for domestic functions.
The domestic battery operates the water pump, fridge, interior lights, and radio. It is charged by the alternator when the vehicle is being driven, by the 240-volt system when plugged into an external power source, and by solar energy.

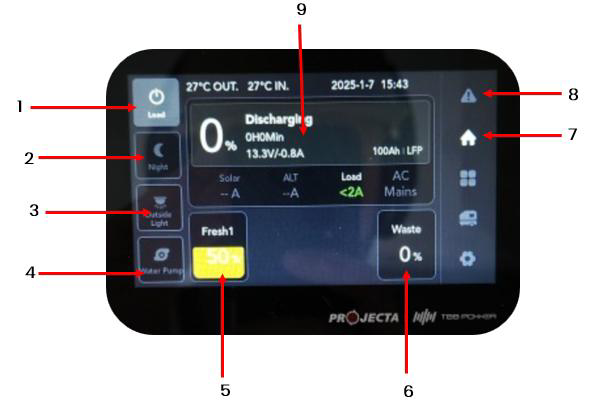

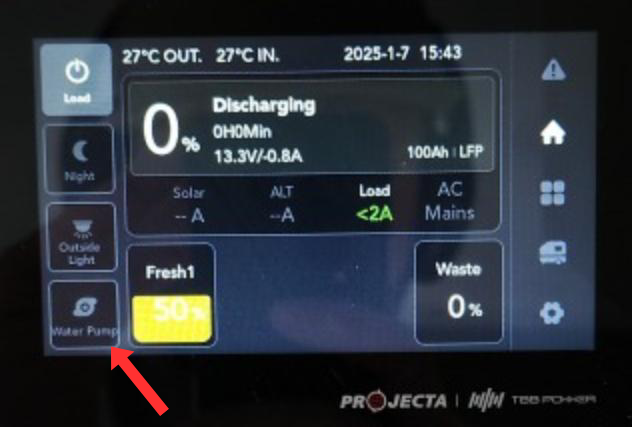

The 12-volt electrical panel is located above the rear passenger seat, next to the kitchen. To turn it on, touch the screen.
Panel functions:
- Power button - turn on to access domestic appliances.
- Night mode - turns the screen off.
- Outside lights - switch light on/off.
- Water pump - turn on the pump for fresh water.
- Fresh water level.
- Waste water level.
- Home page - return to home page.
- Warning light - illuminates if there is an issue.
- Battery power level - remaining power.
7. Fresh water tank
The vehicle has an onboard freshwater system consisting of a water pump and freshwater tank. The water tank has an 80L capacity and is located on the passenger side of the vehicle. This water is for the sink tap.

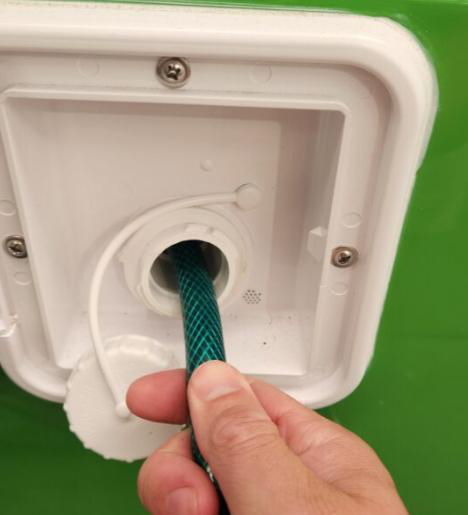

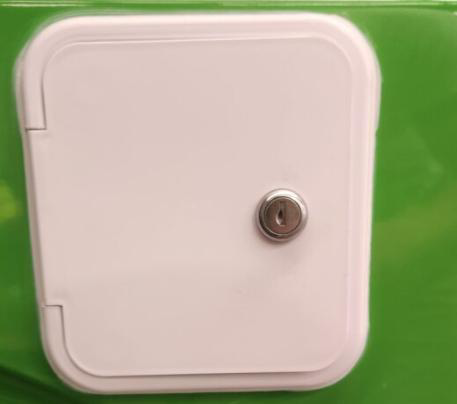

To fill the freshwater tank:

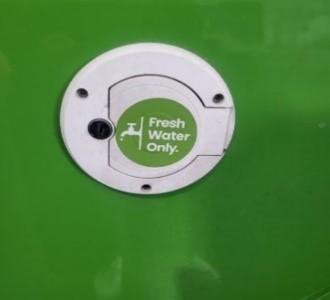

- Flip open the compartment marked "Fresh Water Only".
- Place the end of the water hose into the tank and connect the hose to the tap to fill with fresh water.
Important tips:
- Do not use too much pressure - the tank must be vented while filling.
- If you get an air bubble, remove the hose, reinsert it, and fill slowly again.
- The tank is full when water starts to overflow from the water inlet.
Note: The water from the vehicle tap is not suitable for drinking.
8. Grey water tank
The grey water holding tank collects wastewater from the kitchen sink. You can see the level of your water on the 12-volt switchboard. Note: the grey water level indicator may give an inaccurate reading and show 100% even when empty. Empty the grey water tank as regularly as possible.
To empty the grey water tank:
- Collect the grey water hose from the storage compartment.

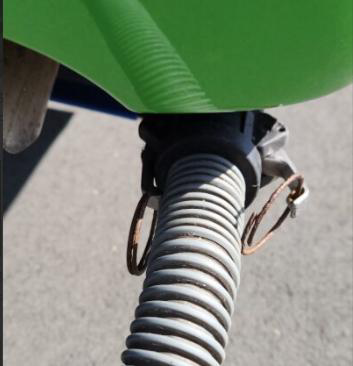

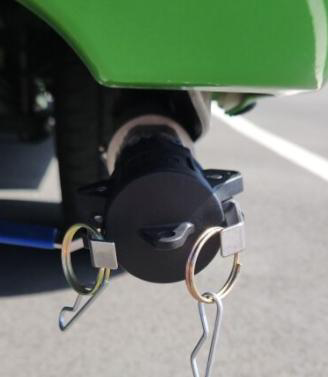

- Connect the hose to the outlet. Make sure it is firmly attached.
- Place the other end of the hose into a dump station disposal opening.
- Open the tank by pulling the lever located at the base of the outlet. Wait for it to empty.
- Once the grey water is empty, close the lever, remove the hose, and stow it away in the storage compartment.
9. Water pump
To use the water pump:
- Ensure there is water in the freshwater tank.
- On the domestic control panel, turn the water pump on. You will hear the pump quietly start up.
Note: Avoid running the pump when the water tank is empty. Operating the pump continuously with no water can cause damage. When you are not using the water pump, ensure it is turned off.
Caution: Do not drink the water from the tap unless it has been boiled first.
10. Toilet
It is highly recommended to regularly empty the toilet cassette. It is mandatory to empty and clean it before returning the vehicle to the depot.

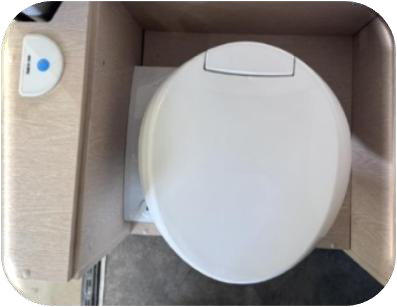

To use the toilet:
- Turn on the water pump at the domestic control panel.
- Push the blue button on the toilet to fill the base with water.

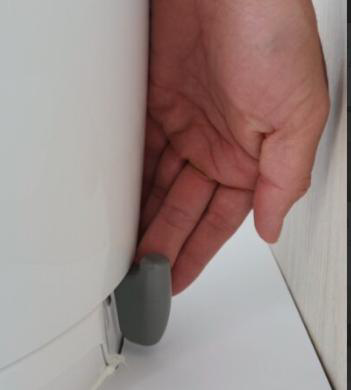

- Once finished, adjust the grey lever on the bottom of the toilet to empty into the cassette.
- Ensure the grey lever is in the closed position after use.
| 1. Turn on the water pump at the domestic control panel. | |
| 2. Push the blue button on the toilet to fill the base with water. | |
| 3. Push the blue button on the toilet to fill the base with water. | |
| 4. Ensure the grey lever is in the closed position after use. | |
12. Toilet cassette
To empty the cassette:
- Ensure the grey lever on the toilet is in the OFF position. Lift up the back door and unlock the cassette door.

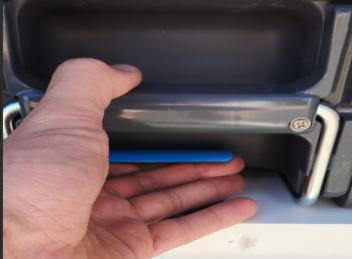

- Lift up the blue lever and pull the cassette towards you.

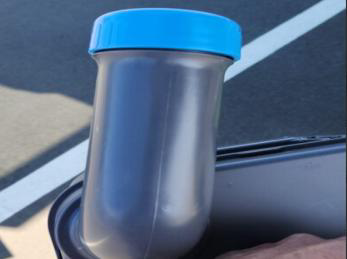

- Adjust the pipe and unscrew the blue lid. Dispose of waste at a blackwater dump station.
- Insert the cassette back into the vehicle, ensuring it locks into place.
| 1. Ensure the grey lever on the toilet is in the OFF position. Lift up the back door and unlock the cassette door. | |
| 2. Lift up the blue lever and pull the cassette towards you. | |
| 3. Adjust the pipe and unscrew the blue lid. Dispose of waste at a blackwater dump station. | |
| 4. Insert the cassette back into the vehicle, ensuring it locks into place. |

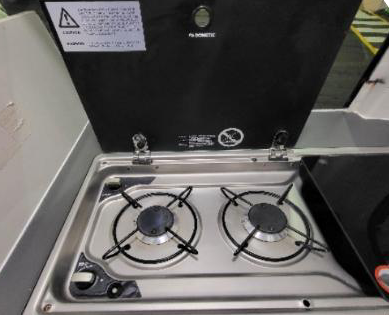

13. Gas Stove
The vehicle is equipped with a gas stove. This stove is not designed for use with pans larger than 20cm.
To use the gas stove:

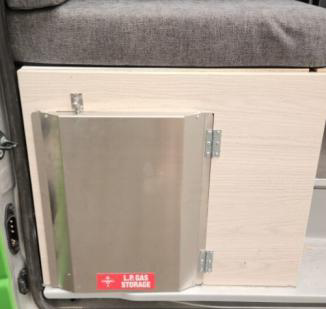

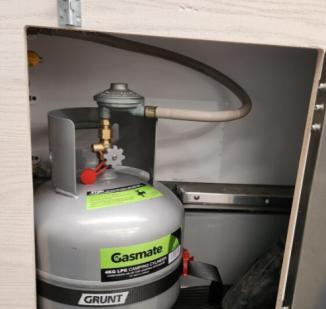

- Unlock the LPG storage area located on the side of the bottom bed. Slowly and carefully, turn the gas valve anticlockwise to open it. You should feel the valve loosen as you turn it.
- Push the knob down. Press and turn the knob to the IGNITE or HIGH setting.
- Hold the knob for a few seconds, then release.
- Adjust the flame by turning the knob to your desired setting.
Note: Always have the vehicle well-ventilated while using the gas stove. Do not leave the gas valve on when not in use.
14. Fridge
The fridge operates via the 12-volt and 240-volt system.
To use the fridge:
- Turn on the fridge using the button inside the fridge.
- Check that the light on the cooling level is at 3 and the lights are on -this indicates the fridge is on and working.
- The thermostat can be found on the side of the fridge. The optimal range is halfway between the minimum and maximum temperature settings.

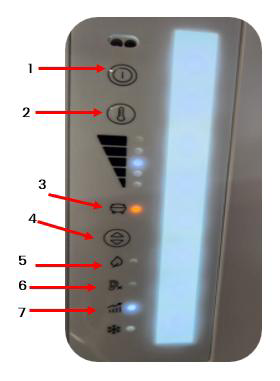

Fridge control panel:
- On/Off button.
- Cooling level setting - should be set to 3.
- Compressor status - Off = orange light, On = white light.
- Operation mode selector for the three modes below.
- Eco Mode - should always be on this mode.
- Quiet Mode.
- Performance Mode.
15. Lights
The vehicle is equipped with cabin lights: one on the top bed, two on the roof, one above the stove, and one outside light.
Make sure the Load button is switched on at the domestic control panel before using the lights.

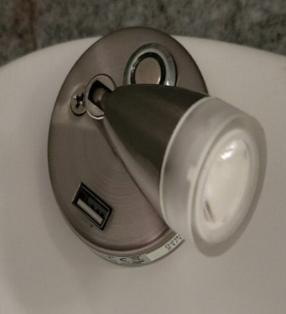

- Top bed light: Use the switch to turn it on. This light is also equipped with a USB port.

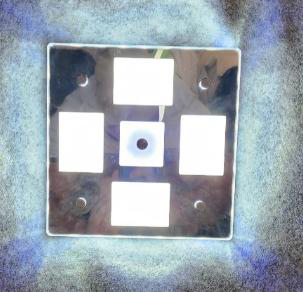

- Roof lights: Touch the middle silver circle once for a blue light, and again for a white light.

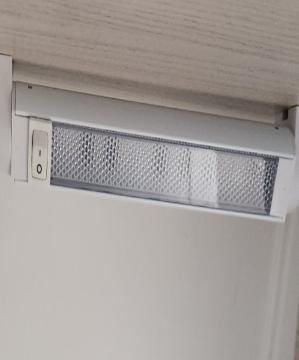

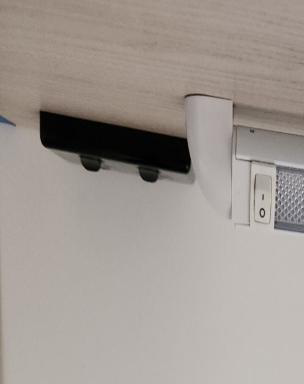

- Kitchen light: The switch is located on the light. The light is also adjustable in different directions.
- Outside light: Touch the outside light button on the domestic control panel to turn on/off.
16. Dining table
Outside dining:
The vehicle is equipped with an outside table connected to the kitchen cabinet. To set up, unhook the elastic clip, squeeze the legs in, then extend out until they click into place.
Inside dining:
The vehicle is also equipped with an inside dining table.

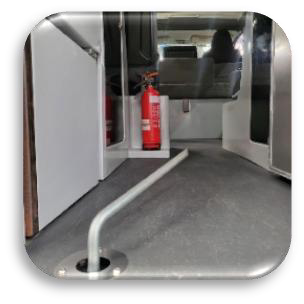

- Place the metal pole into the table holder bracket. Once the pole is secure, place the table on top. The table is stored behind the rear passenger seat.
- Position the table where you would like it and tighten the plastic bolts to hold it in place.
- You can extend the table by rotating out the extension board.

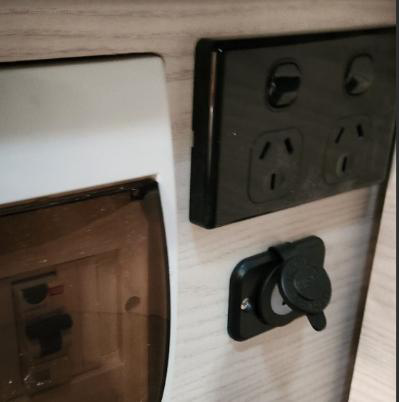

17. Power points
The vehicle is equipped with 2 power points located in the corner of the lower bed and above the kitchen. These will only work when the vehicle is plugged into an external power source.

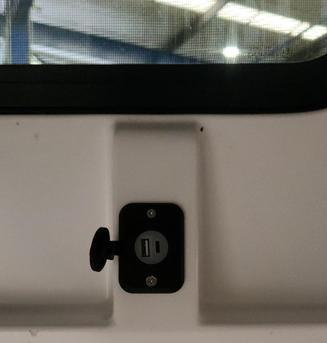

There are also 2 USB charger ports located in the corner of the lower bed and underneath the window on the driver's side, and 1 USB charger port on the top bed light.
These will work when the vehicle is plugged into an external power source and when the 12-volt control panel is turned on.

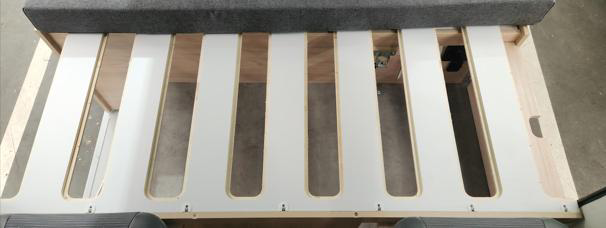

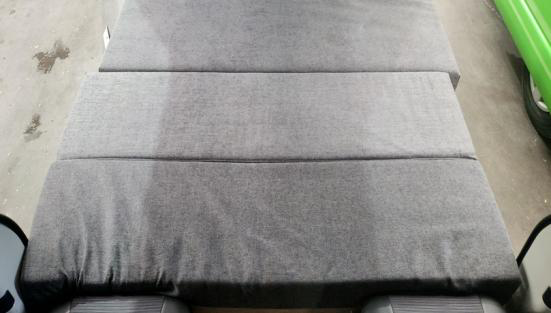

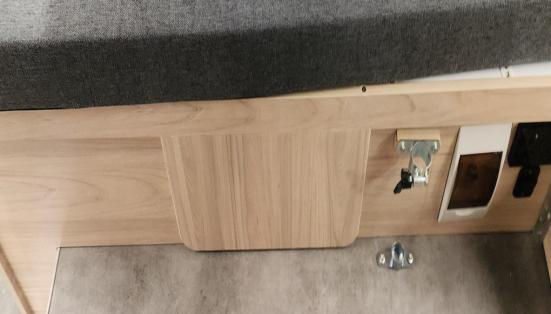

18. Bottom bed
To set up the bottom bed:
- Grip under the front board and pull out until it touches the frame of the rear seat.
- Grab the folded squab and fit it between the back seat and larger squab.

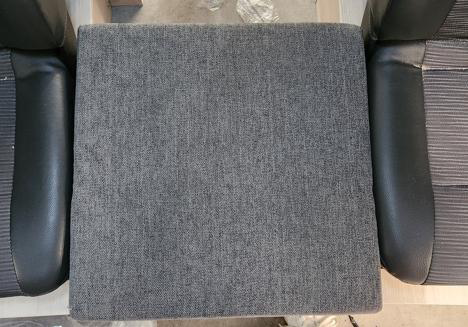

- Fit the small square squab between the two rear seats.

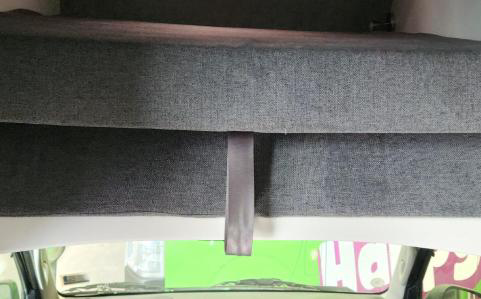

19. Top bed

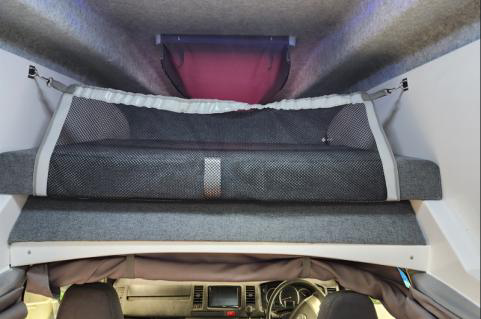

To set up the top bed:
- Unclip both hooks to release the bed net.
- Pull the middle tab to get the mattress out and pull until it stops. Use the foot pedal located on the side of the vehicle to assist with accessing the top bed safely.

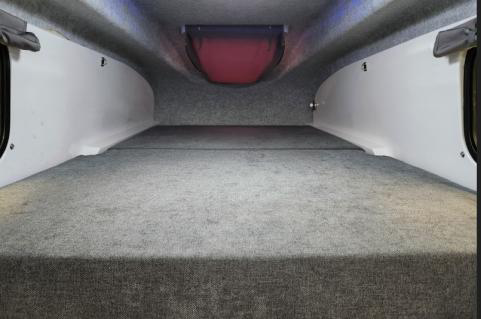

- The top bed is now flat and secure.
20. Fuel
This vehicle uses Unleaded 91. The fuel lever is located below the steering wheel on the right-hand side.
To ensure you are using the correct fuel, always check the fuel sticker located on the fuel door or on the fuel cap. Additionally, review the rental agreement for the specific fuel requirements.
21. Jack and spare tyre

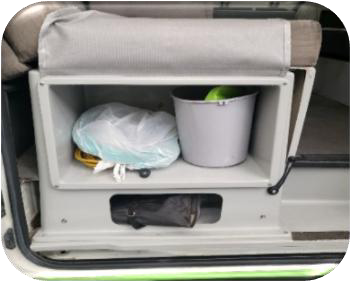

To access the jack tools, open the sliding door and locate the compartment on the left side. Always ensure the vehicle is parked on a stable surface before using the tools.
The spare tyre can be found on the front of the vehicle; however, in some vehicles it may be located on the back.
To access the spare tyre on the front:
- Remove the wheel cover.
- Use the wheel brace to remove the wheel nuts and release and remove the spare wheel.
To access the spare tyre under the rear of the vehicle:

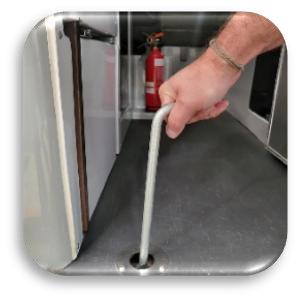

- Use the wheel brace as shown.
- Unscrew the bolt located on the inside rear of the vehicle on the floor, turning anticlockwise.
- Be careful as the tyre can heave and drop when released.
Always make sure the spare tyre is securely fastened before driving.
22. Additional information
- Tyre size: 195/R15
- Tyre pressure: 50 PSI
- Oil type: 10W40
- Coolant type: Red coolant (any brand).
Note: Do not mix coolant colours - if the coolant in the vehicle is red, use red; if green, use green.
23. Dash warning lights
Warning Light Symbol | Warning light | Description | What to do |
|---|---|---|---|
| Brake warning (Red) | Handbrake engaged or low brake fluid. If shown with ABS light, brake fault. | Pull over safely and avoid sudden braking. If shown with the ABS light, stop immediately and contact Roadside Assistance. | |
| ABS warning (Amber) | ABS fault - brakes still work without ABS. If shown with brake light, possible brake failure. | If on alone, drive cautiously and check as soon as possible. If shown with brake light, stop immediately and call Roadside Assistance. | |
| Electronic Stability Control (Amber) | Traction control fault. Flashing = active; constant = fault. | Drive with caution. Restart the engine; if it stays on, contact Roadside Assistance. | |
| Power steering (Amber / Red) | Overheated or failed steering assist. | If red, take extra care steering. Pull over and contact Roadside Assistance. | |
| Airbag / SRS (Red) | Fault in airbag or seatbelt system. | Contact Roadside Assistance. | |
| Coolant overheat (Red) | Engine overheating - possible low coolant or leak. | Stop immediately and contact Roadside Assistance. | |
| Battery charge (Amber / Red) | Battery not charging. | Contact Roadside Assistance. | |
| Oil pressure (Red) | Low oil pressure or high oil temperature. | Stop immediately and contact Roadside Assistance. | |
| Engine management (Amber) | Fault with engine or emissions. | Continue to your destination, then contact Roadside Assistance. | |
| Immobilizer (Amber) | Anti-theft fault or key battery issue. | Continue driving and contact Roadside Assistance. | |
| Pre-collision system (Amber / Red) | Active intervention or system fault. | If red or faulty, check for obstructions and clean sensors. System disabled until fixed. | |
| Stop & Start (Amber) | System deactivated or fault. | Safe to drive. Contact Roadside Assistance if faulty. | |
| Parking assist sensor fault (Amber) | Dirty or damaged parking sensor. | Parking alerts disabled - clean sensors and report the fault. | |
| Radar sensor fault (Amber) | Rear cross-traffic alert disabled. | Clean rear sensors. Report if it persists. | |
| Lane departure alert (Amber) | System off or fault. | Check whether it's turned off; if faulty, contact Roadside Assistance. | |
| Tyre pressure (Amber) | Low tyre pressure or puncture. | Inflate to spec; if flat, stop and call Roadside Assistance. | |
| Collision avoidance (Amber / Red) | System active or fault. | If faulty, check sensors for obstruction. System disabled until fixed. |
